一步一步CocosBuilder(4)[完结]

发表于   |   分类于 ，   |

这一节也是很轻松, 主要是牵涉到Timeline的切换. 其他的都是简单的界面制作.
所以CocosBuilder的威力也体现在这里, 很少的代码就能驱动界面了.

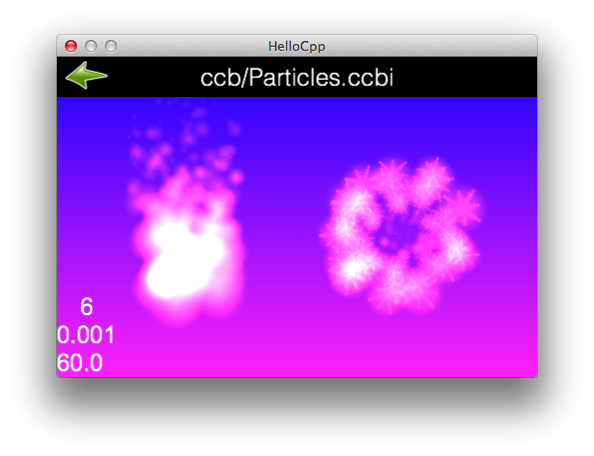

我们这次先做Particle System, Scroll View, 最后以Animations收官.

#####1

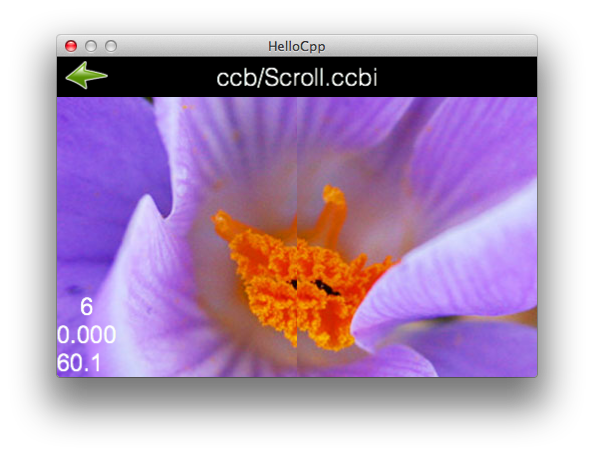

制作Particle System和Scroll View的界面很简单,我们也是以程序为重点, 所以不再赘述.
只需要一句this->openTest("ccb/Scroll.ccbi");就可以调用新的界面了.
其他诸如绑定之类相信大家已经是轻车熟路啦.

#####2

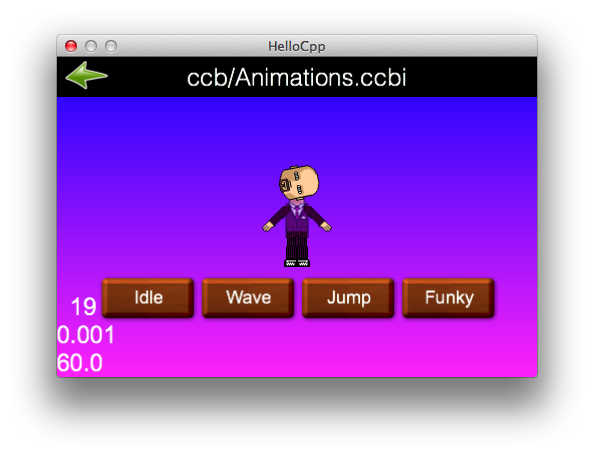

好吧, 我承认一点, 制作Animations的界面的时候, 我直接复制了例子中的节点.
5个Timeline, 还是很复杂的, 应该是一个非常精细的工作. 向美术们致敬.

AnimationsLayer.h
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
class AnimationsLayer
: public cocos2d::CCLayer
, public cocos2d::extension::CCBSelectorResolver
{
public:
    AnimationsLayer();
    ~AnimationsLayer();

    CCB_STATIC_NEW_AUTORELEASE_OBJECT_WITH_INIT_METHOD(AnimationsLayer, create);

    virtual cocos2d::SEL_MenuHandler onResolveCCBCCMenuItemSelector(CCObject * pTarget, const char* pSelectorName);
    virtual cocos2d::extension::SEL_CCControlHandler onResolveCCBCCControlSelector(CCObject * pTarget, const char* pSelectorName);
    void setAnimationManager(cocos2d::extension::CCBAnimationManager *pAnimationManager);

    void onIdle(cocos2d::CCObject * pSender, cocos2d::extension::CCControlEvent pCCControlEvent);
    void onWave(cocos2d::CCObject * pSender, cocos2d::extension::CCControlEvent pCCControlEvent);
    void onJump(cocos2d::CCObject * pSender, cocos2d::extension::CCControlEvent pCCControlEvent);
    void onFunky(cocos2d::CCObject * pSender, cocos2d::extension::CCControlEvent pCCControlEvent);
private:
    cocos2d::extension::CCBAnimationManager *mAnimationManager;
};
class AnimationsLayerLoader : public cocos2d::extension::CCNodeLoader
{
public:
    CCB_STATIC_NEW_AUTORELEASE_OBJECT_METHOD(AnimationsLayerLoader, loader);
protected:
    CCB_VIRTUAL_NEW_AUTORELEASE_CREATECCNODE_METHOD(AnimationsLayer);
};
```
``` cpp AnimationsLayer.cpp
AnimationsLayer::AnimationsLayer()
: mAnimationManager(NULL)
{}
AnimationsLayer::~AnimationsLayer()
{
    CC_SAFE_RELEASE_NULL(mAnimationManager);
}
SEL_MenuHandler AnimationsLayer::onResolveCCBCCMenuItemSelector(cocos2d::CCObject *pTarget, const char *pSelectorName)
{
    return NULL;
}
SEL_CCControlHandler AnimationsLayer::onResolveCCBCCControlSelector(cocos2d::CCObject *pTarget, const char *pSelectorName)
{
    CCB_SELECTORRESOLVER_CCCONTROL_GLUE(this, "onIdle", AnimationsLayer::onIdle);
    CCB_SELECTORRESOLVER_CCCONTROL_GLUE(this, "onJump", AnimationsLayer::onJump);
    CCB_SELECTORRESOLVER_CCCONTROL_GLUE(this, "onWave", AnimationsLayer::onWave);
    CCB_SELECTORRESOLVER_CCCONTROL_GLUE(this, "onFunky", AnimationsLayer::onFunky);

    return NULL;
}
void AnimationsLayer::setAnimationManager(cocos2d::extension::CCBAnimationManager *pAnimationManager)
{
    CC_SAFE_RELEASE_NULL(mAnimationManager);
    mAnimationManager = pAnimationManager;
    CC_SAFE_RETAIN(mAnimationManager);
}
void AnimationsLayer::onIdle(cocos2d::CCObject *pSender, cocos2d::extension::CCControlEvent pCCControlEvent)
{
    this->mAnimationManager->runAnimationsForSequenceNamedTweenDuration("Idle", 0.3f);
}
void AnimationsLayer::onJump(cocos2d::CCObject *pSender, cocos2d::extension::CCControlEvent pCCControlEvent)
{
    this->mAnimationManager->runAnimationsForSequenceNamedTweenDuration("Jump", 0.3f);
}
void AnimationsLayer::onWave(cocos2d::CCObject *pSender, cocos2d::extension::CCControlEvent pCCControlEvent)
{
    this->mAnimationManager->runAnimationsForSequenceNamedTweenDuration("Wave", 0.3f);
}
void AnimationsLayer::onFunky(cocos2d::CCObject *pSender, cocos2d::extension::CCControlEvent pCCControlEvent)
{
    this->mAnimationManager->runAnimationsForSequenceNamedTweenDuration("Funky", 0.3f);
}

整个代码还是很简单. 和以前的几个例子稍微有点不同的是在调用的时候, 需要把CCBReader里面的AnimationManger传入.
好, 还是看下调用的代码吧.

MainScene.cpp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
void MainScene::onAnimations(cocos2d::CCObject *pSender, cocos2d::extension::CCControlEvent pCCControlEvent)
{
    const char * pCCBFileName = "ccb/Animations.ccbi";
    const char * pCCNodeName = "AnimationsLayer";
    cocos2d::extension::CCNodeLoader * pCCNodeLoader = AnimationsLayerLoader::loader();

    CCScene *scene = CCScene::create();

    CCNodeLoaderLibrary *lib = CCNodeLoaderLibrary::newDefaultCCNodeLoaderLibrary();

    lib->registerCCNodeLoader("HeaderLayer", HeaderLayerLoader::loader());

    if (pCCNodeName!=NULL && pCCNodeLoader!=NULL)
    {
        lib->registerCCNodeLoader(pCCNodeName, pCCNodeLoader);
    }

    CCBReader *reader = new CCBReader(lib);
    CCNode *node = reader->readNodeGraphFromFile(pCCBFileName, this);
    reader->autorelease();

    if (node != NULL)
    {
        //获取AnimationManger 并传给AnimationsLayer
        ((AnimationsLayer*)node) ->setAnimationManager(reader->getAnimationManager());

        scene->addChild(node);
    }

    this->mTitleLabelTTF->setString(pCCBFileName);

    CCDirector::sharedDirector()->pushScene(scene);
}

###后记
看到微博上@做游戏的老G 吐槽说CocosBuilder如何不好用, 学习难度比较大. 我也是很认可这一点.
但是只要是坚持把TestCpp例子完全读完了, 相信掌握CocosBuilder也是很快能够做到的.
既然你看完了这个教程. 相信你也已经能够很好地驾驭CocosBuilder. 关键还在实践呦!

微博上@Ghost_233 说了一个很好的思路, 直接从ccb文件中生成对应的C++类, 而且他还做了一些实践.
我暂时还没有研究他的代码, 不过肯定是可行. 这是一个很赞的思路.
希望大家能动手, 最好合作出来一个较好的工具来, 我想, 是不是集成到CocosBuilder会更好?

谢谢大家耐心看完我的文章.


代码打包下载:下载点

谢谢您耐心看完此文, 希望能对您有些帮助.如果有什么问题, 意见, 建议, 拍砖, 欢迎留言或者联系我.

新浪微博: @杨世玲 http://weibo.com/young40
